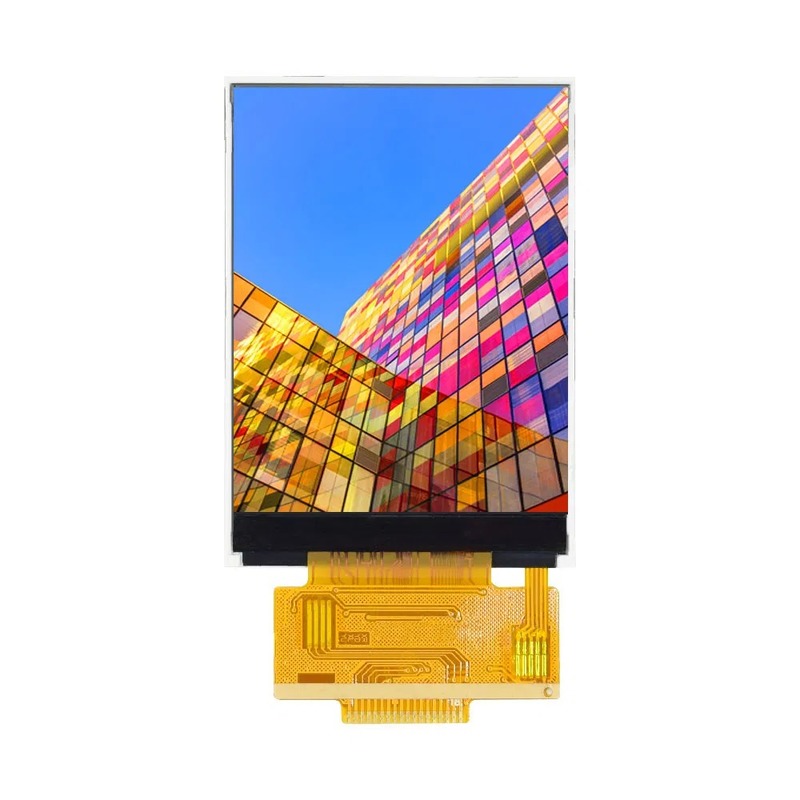

2.9'' 320*RGB*120 TFT LCD Module with Wide Temperature Range -20 to +70°C and SSD2119 Driver IC
Détails sur le produit:
Conditions de paiement et expédition:
| Quantité de commande min: | 500 |
|---|---|
| Prix: | 1.99 |
|
Détail Infomation |
|||
| Modèle n °: | RYS029GQ07NS: Les données sont fournies par les autorités compétentes. | Écran tactile: | Pas de fonction tactile |
|---|---|---|---|
| Temps de réponse: | 30 ms | Angle de vision: | TN ＋ Film |
| Technologie d'affichage: | Tft | Mode d'entraînement d'affichage à cristaux liquides: | Module LCD à entraînement multiple |
| Taille LCD: | 2.9' | Dimension de contour: | 76.9*38.22*3.26 mm |
| Zone active: | 70.08*26,28 mm | Pas de pixel: | 0.219*0.219 mm |
| IC de conducteur: | SSD2119 | Température de fonctionnement: | -20 à +70 degrés Celsius |
| Mode d'affichage: | Normalement blanc | Tension de fonctionnement: | 5V |
| Arrangement de pixels: | Rayure de verticale RVB | ||
| Mettre en évidence: | 2.9'' TFT LCD Module,320*RGB*120 LCD Display Module,Wide Temperature TFT Screen |
||
Description de produit

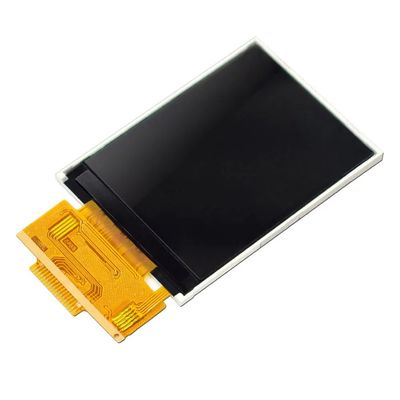

The 2.9-inch TFT SSD2119 Wide Temperature LCD Module utilizes TFT (thin film transistor) liquid crystal technology to deliver high-quality images through precise pixel control. This technology offers superior performance with high refresh rates, excellent color reproduction, and wide viewing angles.
Key features include:
- LED backlight for optimal brightness in various lighting conditions
- Compact size with high-quality display capabilities
- Designed for reliable performance in demanding environments
| Item | Standard Value |
|---|---|
| LCD type | TFT |
| LCD size | 2.9inch (Diagonal) |
| Active Area | 70.08*26.28 mm |
| Outline Dimension | 76.9*38.22*3.26 mm |
| Viewing Direction | 12 O'clock |
| Pixel Arrangement | RGB-Vertical Stripe |
| Display Mode | Normally white |
| Operating Voltage | 5v |
| COMPLIABLY | ROHS |
| Top & Tst | -20˚C ~ +70˚C & -30˚C ~ +80˚C |
This versatile 2.9-inch TFT LCD display is suitable for numerous applications including:
- Handheld devices and portable electronics
- Industrial control panels and HMI systems
- Medical instruments and diagnostic equipment
- Automotive displays and instrumentation
- Consumer electronics and smart devices
- Embedded systems and IoT applications
- Test and measurement equipment
- Home appliances and smart home devices
- Over 10 years of experience in LCD display module design, development, and production
- Comprehensive quality control with professional design, debugging, and inspection processes
- Wide selection of in-stock products available for same-day shipping
- Customization services with detailed drawings and procedures for customer confirmation
- Sunlight readable options available with both capacitive and resistive touch options
- Reliable one-year warranty service
Packaging: Products are carefully packaged for protection. Small items use tray + carton packaging, while larger items use foam slot + carton. Custom packaging solutions available upon request.
Shipping:
- Small quantities: UPS, DHL, FedEx, TNT, or EMS Express
- Large quantities: Buyer's cargo agent in China or our cargo agent via air/sea
Delivery Time:
- Ready-made samples: within 1 week
- Custom samples: 1-2 weeks
- Mass production: 3-4 weeks
Yes, we offer OEM&ODM services. Please send us your requirements.
We accept TT, West Union, and PayPal.
Yes, we offer samples with sample fee and delivery fee required.
Production time varies depending on product specifications and requirements.
Order process: Client PO → Our PI → Payment → Lead time confirmation → Shipping instructions → Delivery → Tracking → Receipt
