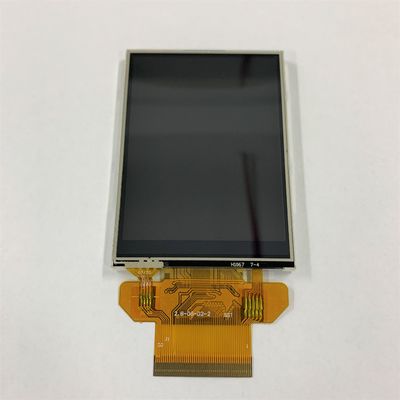

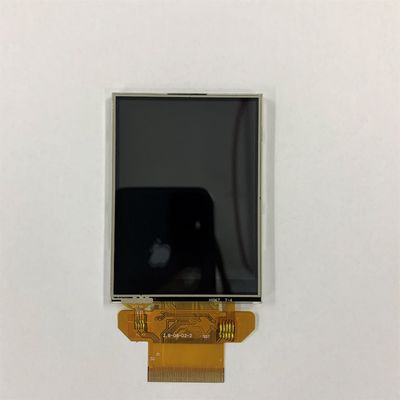

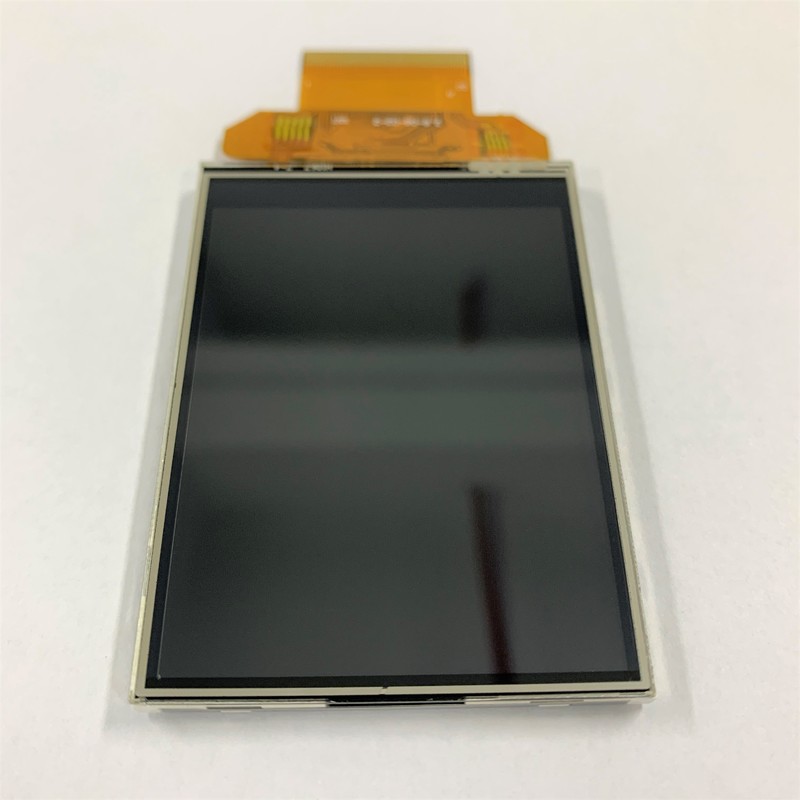

RYTPQ28NN08-02 2.8-inch TFT LCD Display Module with ILI9341V Driver Touch Panel
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Numéro de modèle: | Rytpq28nn08-02 |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | négociable |
| Détails d'emballage: | Cartons, Capboard, EPE, plateau blister. |
| Délai de livraison: | 15 à 25 jours ouvrables |
| Conditions de paiement: | L / C, D / A, D / P, T / T, Western Union, Moneygram |
| Capacité d'approvisionnement: | 300 000 pièces par mois |
|
Détail Infomation |
|||
| Type d'affichage: | 2,8 TFT | Angle de vision: | tous |
|---|---|---|---|
| IC de conducteur: | Ili9341v | Nombre de points: | 240 RVB × 320 pixels |
| Point de point: | 43,2 (h) × 57,6 (v) mm | Dimension de contour: | 50,2 (w) × 69,3 (h) × 4,0 (d) mm |
| Arrangement de pixels: | Rayures verticales RVB | Affichage de la couleur: | couleurs 262K |
| Mettre en évidence: | 2.8-inch TFT LCD display module,ILI9341V driver touch panel,TFT LCD module with touch |
||
Description de produit
RYTPQ28NN08-02 2.8-inch TFT LCD Display Module with ILI9341V Driver Touch Panel
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Product Name | 1.3'' 240*240 IPS TFT LCD module |
| Model No. | RYTPQ28NN08-02 |
| Display Size | 2.8 inches (Diagonal) |
| Resolution | 240 x 320 pixels (QVGA) |
| Display Type | TFT, Transmissive, Normally White |
| Colors | 262K |
| Driver IC | ILI9341V |
| Touch Panel | 4-Wire Resistive (RTP) |
| Interface | Parallel (8080) & Serial (SPI) |
| Supply Voltage (VDD) | 3.0V ~ 3.3V (Typ.) |
| Brightness | 300 cd/m² (Typ.) |
| Operating Temperature | -20°C ~ +70°C |
| Dimensions (LxWxH) | 69.3mm x 50.2mm x 4.0mm |
Product Introduction: RYTPQ28NN08-02 2.8-inch TFT LCD Display
The RYTPQ28NN08-02 is a high-performance, compact 2.8-inch TFT LCD module designed for embedded applications requiring a vibrant display and intuitive touch interface. At its core is the powerful ILI9341V driver IC, providing excellent control and compatibility.
This module combines a bright, 262K-color transmissive display with a 4-wire resistive touch panel (RTP), all in a single, integrated unit. Its versatility is showcased through support for multiple interface protocols, including 8080 parallel MCU and SPI serial interfaces, making it adaptable to a wide range of host controllers.
Ideal for industrial controls, smart home devices, portable instruments, and hobbyist projects, the RYTPQ28NN08-02 offers a perfect blend of visual quality, functionality, and ease of integration.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Key Features & Selling Points
-
Integrated Solution: 2.8" TFT Display + Resistive Touch Panel + Driver IC, ready to use.
-
Vivid Display: High brightness of 300 nits and 262K colors ensure clear and colorful graphics.
-
Multi-Interface Support: Offers great flexibility with both 8/16/18-bit parallel and 3-wire/4-wire SPI interface options.
-
Trusted Driver IC: Powered by the popular and well-supported ILI9341V controller.
-
Wide Operating Temperature: Reliable performance in various environments (-20°C to +70°C).
-
Easy Integration: Compact form factor with a standard FPC connector.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
